KAOMING

(VMC)5AX

KMC-828RF^W2800

KAOMING - Product line up - KMC-RF Series - Similar products - Comparison

Characteristics

Box way

XYZ

Model variations

Portal VMC(5AX) 1 MillSpindle(AC) FixedCrossRail

Category	Item	Specification
Capacity	Distance between columns[mm]	2800
Travels	Stroke X[mm]	8230
	Stroke Y[mm]	3450
	Stroke Z[mm]	1100
	Stroke A[deg]	210
	Stroke C[deg]	400
Table	Workpiece allowable Load[kg]	22000 28000
	Table Size[mm]	8000×2400
Category	CNC brand	Fanuc Siemens
	Origin	Taiwan China

Milling spindle 1(H1)

Spindle name			Hor
Taper	7:24 taper No. 50	7:24 taper No. 50	7:24 taper No. 50
Rotational speed[rpm]	6000	8000	3500
Power[kW]
Torque[Nm]
Transmission

Tool Magazine 1

Tool holder taper	7:24 taper No. 50
No. of tool storage[ea]	30 40 50 60 90
Tool diameter[mm]
Tool length[mm]
Tool weight[kg]
Tool change time(TTT)[s]
Tool change time(CTC)[s]

*A: Max. tool diameter (with adjacent tools)*B: Max. tool diameter (without adjacent tools), C: Max. tool diameter (single point)

Guide way

Axis	X	Y	Z
Guide way	Box way	Box way	Box way
Qty	2	2	2

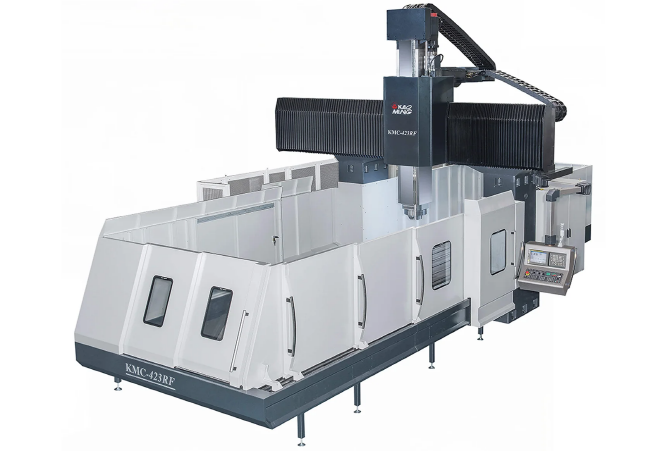

KMC-RF Series

Model	Table Size	Origin
KMC-318RF (VMC)5AX Bridge	3000×1650	Taiwan China
KMC-321RF (VMC)5AX Bridge	3000×1650	Taiwan China
KMC-323RF (VMC)5AX Bridge	3000×2000	Taiwan China
KMC-325RF (VMC)5AX Bridge	3000×2000	Taiwan China
KMC-328RF (VMC)5AX Bridge	3000×2400	Taiwan China
KMC-332RF (VMC)5AX Bridge	3000×2600	Taiwan China
KMC-418RF (VMC)5AX Bridge	4000×1650	Taiwan China
KMC-421RF (VMC)5AX Bridge	4000×1650	Taiwan China
KMC-423RF (VMC)5AX Bridge	4000×2000	Taiwan China
KMC-425RF (VMC)5AX Bridge	4000×2000	Taiwan China
KMC-428RF (VMC)5AX Bridge	4000×2400	Taiwan China
KMC-432RF (VMC)5AX Bridge	4000×2600	Taiwan China
KMC-436RF (VMC)5AX Bridge	4000×3000	Taiwan China
KMC-518RF (VMC)5AX Bridge	5000×1650	Taiwan China
KMC-521RF (VMC)5AX Bridge	5000×1650	Taiwan China
KMC-523RF (VMC)5AX Bridge	3000×2000	Taiwan China
KMC-525RF (VMC)5AX Bridge	5000×2000	Taiwan China
KMC-528RF (VMC)5AX Bridge	5000×2400	Taiwan China
KMC-532RF (VMC)5AX Bridge	5000×2600	Taiwan China
KMC-536RF (VMC)5AX Bridge	5000×3000	Taiwan China
KMC-618RF (VMC)5AX Bridge	6000×1650	Taiwan China
KMC-621RF (VMC)5AX Bridge	6000×1650	Taiwan China
KMC-623RF (VMC)5AX Bridge	6000×2000	Taiwan China
KMC-625RF (VMC)5AX Bridge	6000×2000	Taiwan China
KMC-628RF (VMC)5AX Bridge	6000×2400	Taiwan China
KMC-632RF (VMC)5AX Bridge	6000×2600	Taiwan China
KMC-636RF (VMC)5AX Bridge	6000×3000	Taiwan China
KMC-818RF (VMC)5AX Bridge	8000×1650	Taiwan China
KMC-821RF (VMC)5AX Bridge	8000×1650	Taiwan China
KMC-823RF (VMC)5AX Bridge	8000×2000	Taiwan China
KMC-825RF (VMC)5AX Bridge	8000×2000	Taiwan China
KMC-828RF (VMC)5AX Bridge	8000×2400	Taiwan China
KMC-832RF (VMC)5AX Bridge	8000×2600	Taiwan China
KMC-836RF (VMC)5AX Bridge	8000×3000	Taiwan China
